The Jigsaw Eclipse is our flagship product which will control up to four pumps using a mechanical or serial interface. The system is fully MID (Weights and Measures) approved with or without a receipt printer. The system has been designed to be ultra reliable to give many years faithful service.

Fuel Management Terminals :

Jigsaw Eclipse

Tank Stock Management :

The Nova has most of the features of the Eclipse has, but can only manage 1 pump, has a numeric keypad and smaller display, and a more limited range of ID device interfaces. The Nova may be DC powered and hence lends itself for vehicle mounting for mobile refuelling projects.

Jigsaw Nova

Vehicle / Driver ID :

A vehicle mounted unit which ID’s the vehicle and driver, and passes the current mileage/hours with a key touch on the vehicle, then a key touch at the fuel island.

• Simple to Use
• No Data Entry Required
• Driver ID Included
• Automatic Mileage Capture

Jigsaw Midas

This small unit is mounted on to the vehicle and works in conjunction with another ID device such as a hand held tag or FuelWand.

• Automatic Mileage Capture
• Verifies Vehicles Presence
• Radio Linked to fuel Island
• Can Be used with EasyFuel, LaserPlate, FuelWand and TeleTag

Jigsaw FuelGuard

The Jigsaw FuelWand is most often used in mobile (bowser) refulling. The Hand Held Reader is battery powered and radio linked to the fuel island terminal.

• Remote, Radio Linked Tag Reader - Useful in Mobile Refuelling operations
• Tags fixed to vehicle
• Verifies Vehicles Presence

Jigsaw FuelWand

The Jigsaw Tankguard can read the levels of up to 16 Tanks and feed this information back in Near-Real-Time to the web service, The web service shows a consolidated view of all the tanks on the site, and all the sites in your network so that stock movements may be easily managed.

Jigsaw systems are installed with the largest oil supplier in the UK managing the entire estate on a single web page. The TankGuard can interface to many of the current tank gauge manufacturers offerings  so there is no need to change existing gauges.

Jigsaw TankGuard

Auto ID Systems :

RFID Tags are simple to use and are very robust

• Simple to Use
• Lowest Cost ID device
• May be used in conjunction with FuelWand and FuelGuard
• May be used for Vehicle or Driver ID
•  Fob Format easily fitted to key ring
•  Fob, Card and Vehicle Mount tags available
•  Fobs from old FM systems may be used

Jigsaw SecuriTags

Where vehicles are already issued with a Fuel Card, the system can use this to ID the vehicle.

• May be used in conjunction with FuelWand and FuelGuard
• All standard Fuelcards may be used
• Fuel Card Data from offsite fuellings is easily imported.

Fuel Cards

Used in several older fuel management systems, these may be re-used when upgrading to jigsaw

• Robust design
• Simple to use
• Fob mount easily fitted to keyring
• Legacy fobs from older systems may be used on Jigsaw systems.

Dallas Touch ID’s

Features Summary :

• Real Time, Web Based System
• All Stainless Steel construction
• Clear 4 Line, Backlit Display
• Full Alpha Numeric Keypad
• 2 or 4 pump Options
• Serial or Mechanical Pump Interfaces
• Fully MID Approved
• Multiple Mounting Options
• Pump Integrated Options
• Legacy System Retrofit Options

• Real Time, Web Based System
• All Stainless Steel construction
• Clear 4 Line, Backlit Display
• Numeric Keypad
• Single Pump Operation
• Mechanical Pump Interface
• Multiple Mounting Options
• External Override Key Switch
• May be DC Powered for Bowser use

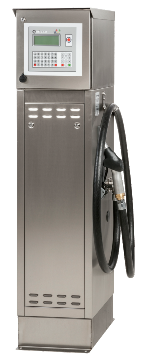

Pump Integrated Eclipse

• Real Time, Web Based System
• Interfaces to all the common tank gauge types
• Self contained communications module
• Can work alongside Jigsaw Fuel Monitors to measure deliveries in to tanks or out of tanks directly
• Monitors Out-of -Hours fuel drops and can launch texts and e-mails

The Jigsaw LaserPlate is a bar code reader which can be used for vehicle ID as well as data entry from job sheets and the like.

• Read Printed Vehicle ID Bar Codes, including VIN Number
• Enter data from Printed Bar Codes
• Limit Transaction Volume by reading Fuel Limit Bar Code

Jigsaw LaserPlate

This has a nozzle based reader which reads an RFID tag fitted to the vehicles filler neck. Inserting the nozzle ID’s the vehicle and starts the pump.

• Secure - Pump stops if nozzle removed
• Ultra Simple to operate
• Optional Vehicle Unit for Mileage Capture
• No Wires from Nozzle - Radio Linked

Jigsaw EasyFuel

Nozzle ID System

Hands Free Vehicle and Fueller ID System ideal for Bus refuelling systems.

• Automatically ID’s Vehicle and Fueller
• Tags fixed to vehicle
• Clear Fuelling Lane Status Display
• Verifies Vehicles Presence
• Add FuelGuard for Auto Mileage Capture

Jigsaw TeleTag
